Metal Disc Blanks
Series : 1050,1060,1070, 1100,3003, 5052
Temper : O, H12, H14, H16, H18
Thickness : 0.2-10.0 mm
Diameter : 20-1200mm
Application : road signs, cookware, lamp shade
Metal Disc Blanks

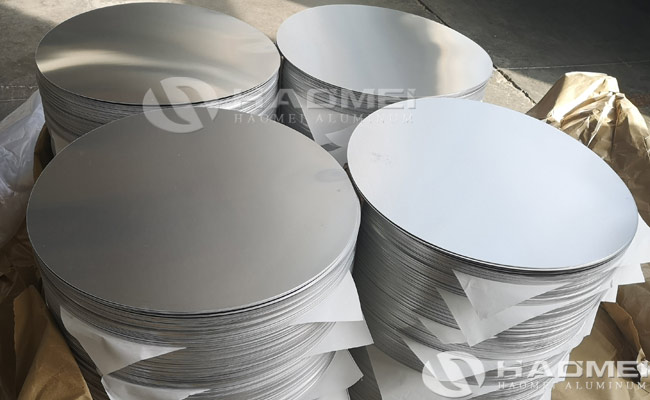

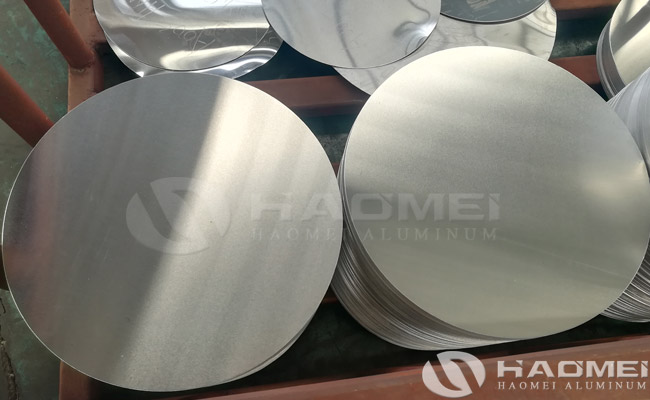

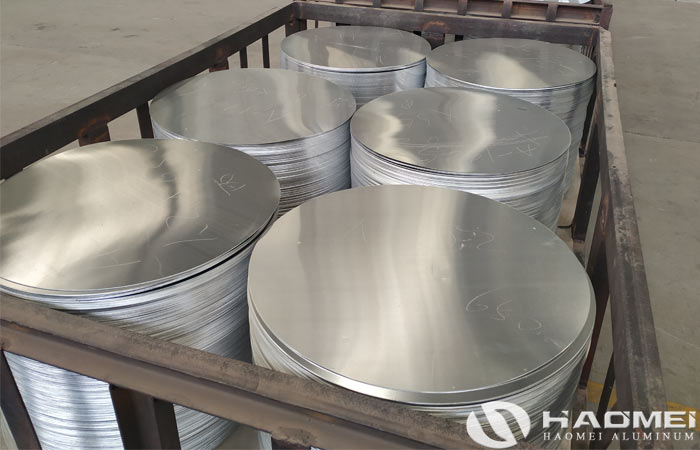

Aluminium metal disc blanks are widely used in processing and manufacturing of road signs, traffic signs, street signs and highway signs.
Due to its low density, light weight, smooth surface, good extensibility, excellent electrical and thermal conductivity, aluminum metal circle blanks are also widely used in kitchen utensils, such as aluminum pans, aluminum pots and aluminum braids.
Specification of Metal Disc Blanks are:
Alloy | Temper | Specification | |
Thickness(mm) | Diameter(mm) | ||
1050,1060 1070,1100,3003 | O,H12,H14 | 0.40—6.0 | 20--1200 |
Properties of Blank Disc of Metal:
TEMPER | THICKNESS(mm) | TENSILE STRENGTH | ELONGATION% | Standard | ||||||||||||||||
HO | 0.36-6 | 60-100 | ≥ 20 | GB/T91-2002 | ||||||||||||||||
H12 | 0.5-6 | 70-120 | ≥ 4 | |||||||||||||||||
H14 | 0.5-6 | 85-120 | ≥ 2 | |||||||||||||||||
Processing of Metal Circle Blanks are:
Application of Metal Disk Blanks are:
