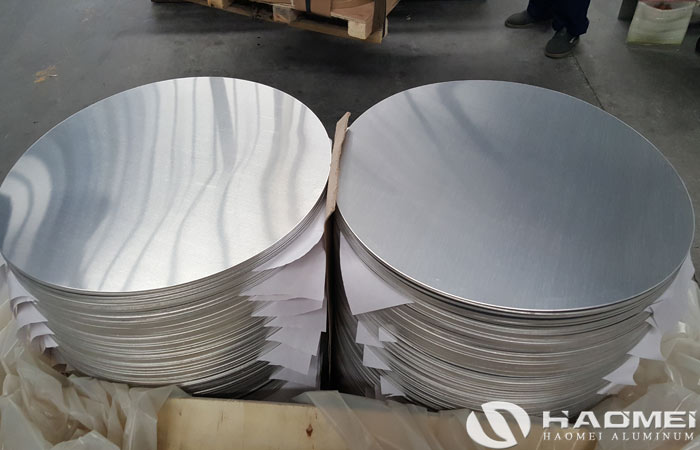

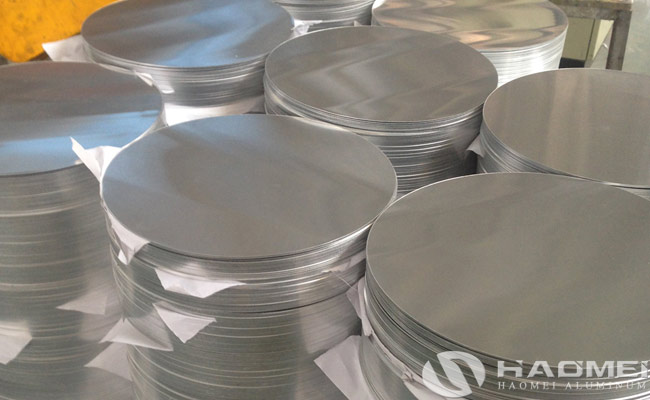

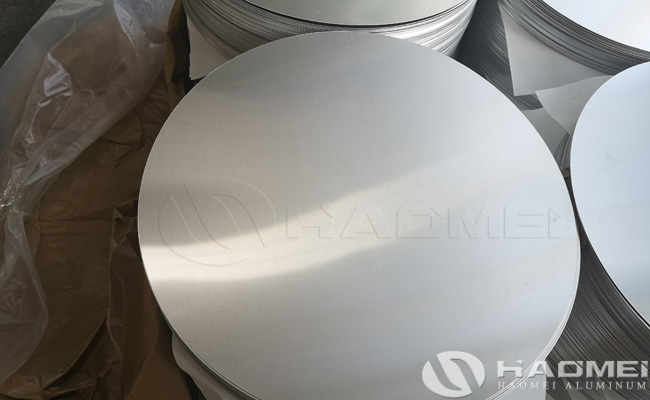

Circular Aluminum Plate
Series : 1050,1060,1070, 1100,3003, 5052
Temper : O, H12, H14, H16, H18
Thickness : 0.3mm - 10mm
Diameter : 20mm -1200mm
Application : Cooking utensils, road signs, lamp shades
Haomei provide supreme quality of circular aluminum plate with thicknesses between 0.3mm - 4mm and diameter ranging between 3.94" - 38.5, which would meet your needs for making cookware such as pots, pans, fryers etc. cookware, utensils, Non-stick pan/pot, Bowl or cup, traffic sign and so on.
Sizes of Circular Aluminum Plate
Alloy | Temper | Thickness | Diameter |
1050,1060,1070, 1100,3003 | O,H12,H14 | 0.36-10 mm | 20-1200 mm |
Tips: Special specifications can be produced according to your requirement | |||
Chemical Composition of Aluminum Circular Plate
Alloy | Si | Fe | Cu | Mn | Mg | Zn | V | Ti | Other | Al |
1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.03 | 0.03 | 99.5 |
1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | 0.05 | 0.05 | 0.03 | 0.03 | 99.6 |
1070 | 0.25 | 0.25 | 0.04 | 0.03 | 0.03 | 0.04 | 0.05 | 0.03 | 0.03 | 99.7 |
1100 | 0.95 | 0.95 | 0.05-0.2 | 0.05 | / | 0.1 | / | / | 0.05 | 99 |
3003 | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | / | 0.1 | / | / | 0.15 | 96.95- |

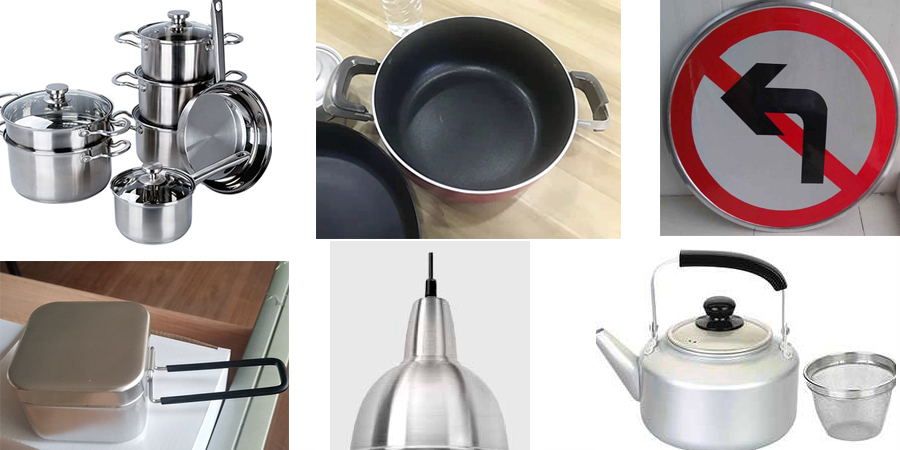

Application of Aluminium Circular Plate
