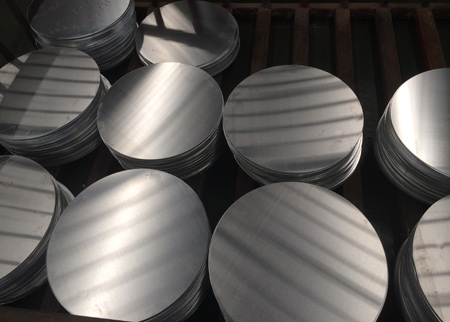

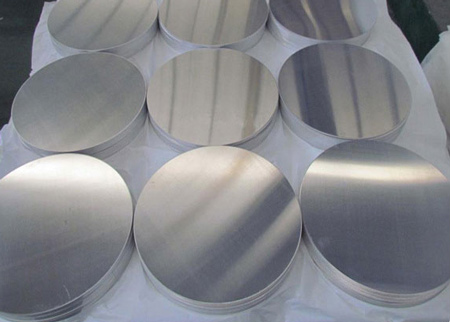

Aluminum Circle Blanks/ Disc Blanks

Home/Aluminum Discs/Aluminum Circle Blanks/ Disc Blanks

Aluminum Circle Blanks/ Disc Blanks

Product Description

We are Aluminum Circle Suppliers, stockist and manufacturer of Aluminum Circles. We provide supreme quality of heavy gauge circle blanks with thicknesses between 0.3mm – 4mm and diameter ranging between 3.94″ – 38.5, which would meet your needs for making cookware such as pots, pans, fryers etc.

Product Introduction of Aluminum Blanks/Circles

Alloy: 1050, 1060, 1070, 1100, 3002, 3003, 3004, 5052A, 5052, 5754, 6061
Hardness: O, H12, H14, H16, H18
Thickness: 0.012″ – 0.15″ (0.3mm – 4mm)
Diameter: 3.94″ – 38.5″ (100mm -980mm)
Surface: Polished, Bright, Anodized
Usage: Suitable for making pots, pans, pizza trays, pie pans, cake pans, covers, kettles, basins, fryers, light reflectors
Stamping: Materials include: steel, galvanized steel, aluminum, aluminum alloy and other metal.

The Aluminum Discs Blanks are made from very high-quality raw material that ensures high durability for users which is why the discs provided by us are high in demand for making cookware products. We, as one of the leading Aluminum circle blanks suppliers, continuously strive to provide the highest quality of aluminum products, therefore, have relationships with only the best aluminum circle/disc suppliers to uphold the international quality parameters in ASTM and ISO certifications.

Specifications of Aluminum Circle Blanks

Products Name Alloy Purity Hardness Specification
Thickness Diameter
Aluminum Discs 1050, 1070, 3003 96.95-99.70% O, H12, H14 0.5-4.5 90-1020

 Chemical Composition of Aluminum Disc Blanks

Alloy Si Fe Cu Mn Mg Cr Ni Zn Ca V Ti Other Min Al
1050 0.25 0.40 0.05 0.05 0.05 0.05 0.05 0.03 0.03 99.50
1070 0.25 0.25 0.04 0.03 0.03 0.04 0.05 0.03 0.03 99.70
3003 0.60 0.70 0.05-0.20 1.00-1.50 0.03 0.10 0.15 96.75

 Mechanical Properties for Aluminum Blanks

Temper Thickness(mm) Tensile Strength Elongation(%) Standard
O 0.4-6.0 60-100 ≥ 20 GB/T3190-1996
H12 0.5-6.0 70-120 ≥ 4
H14 0.5-6.0 85-120 ≥ 2

 Specification Tolerances

Blanked and Sheared Circle Products
 Thickness(mm) Diameter Range (D)(mm)
0.5-4.5 D ≤  455 455< D  ≤  1000  1000< D ≤  1200
 +/- 0.079  +/- 0.099 +/- 0.015
The max dimension may vary according to individual specifications
